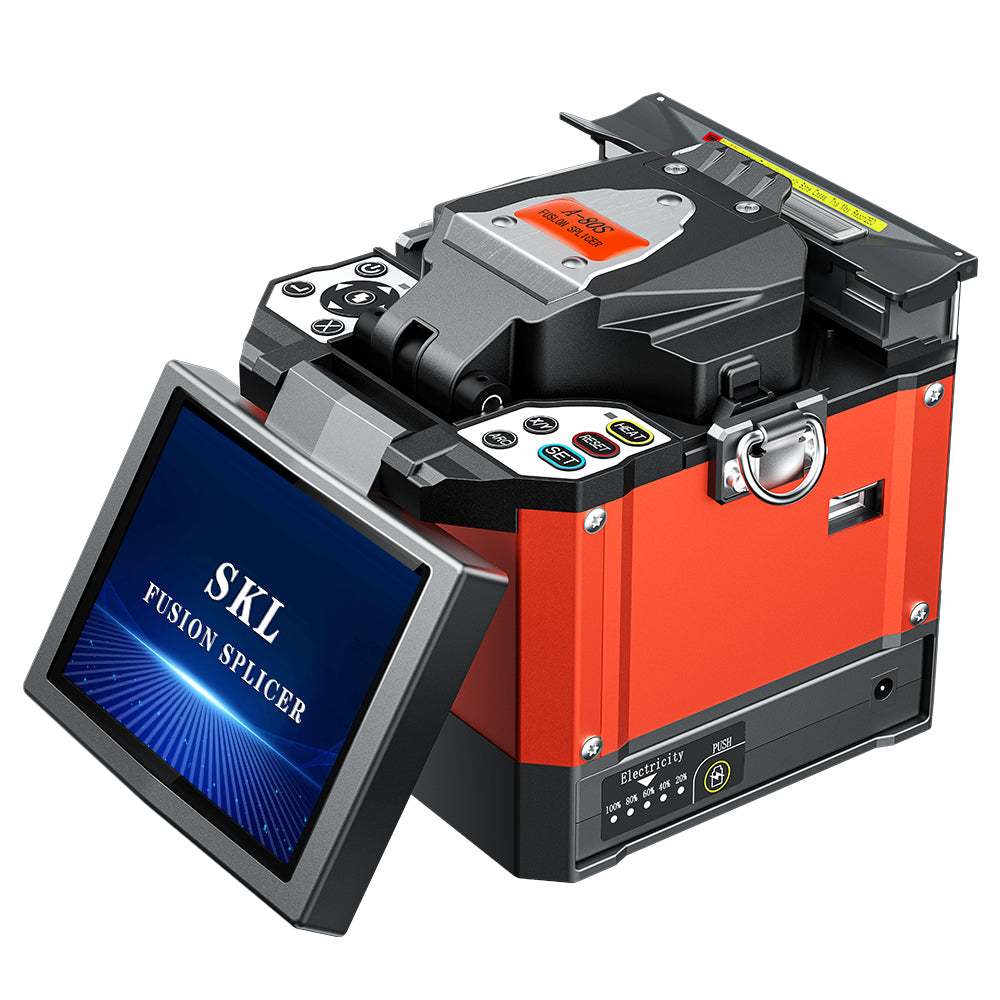

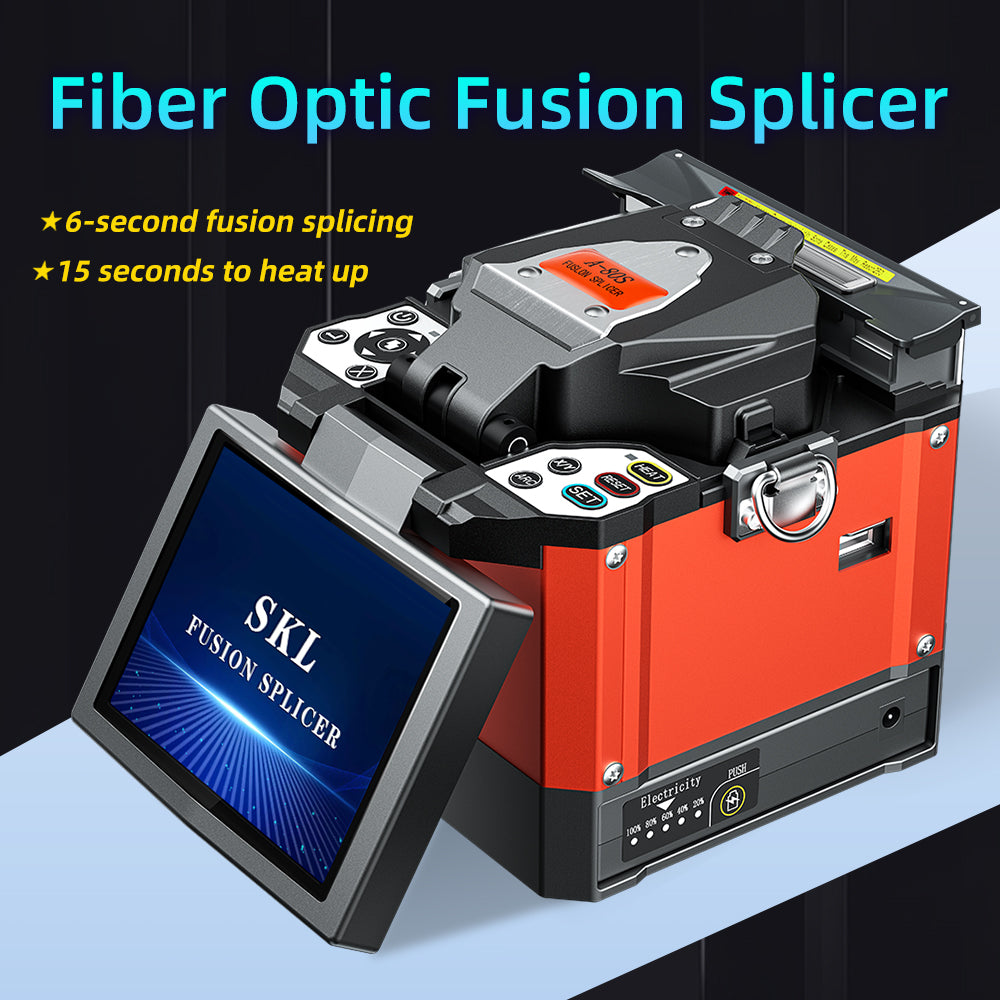

Automatic Fiber Optic Fusion Splicer Machine with Core Alignment

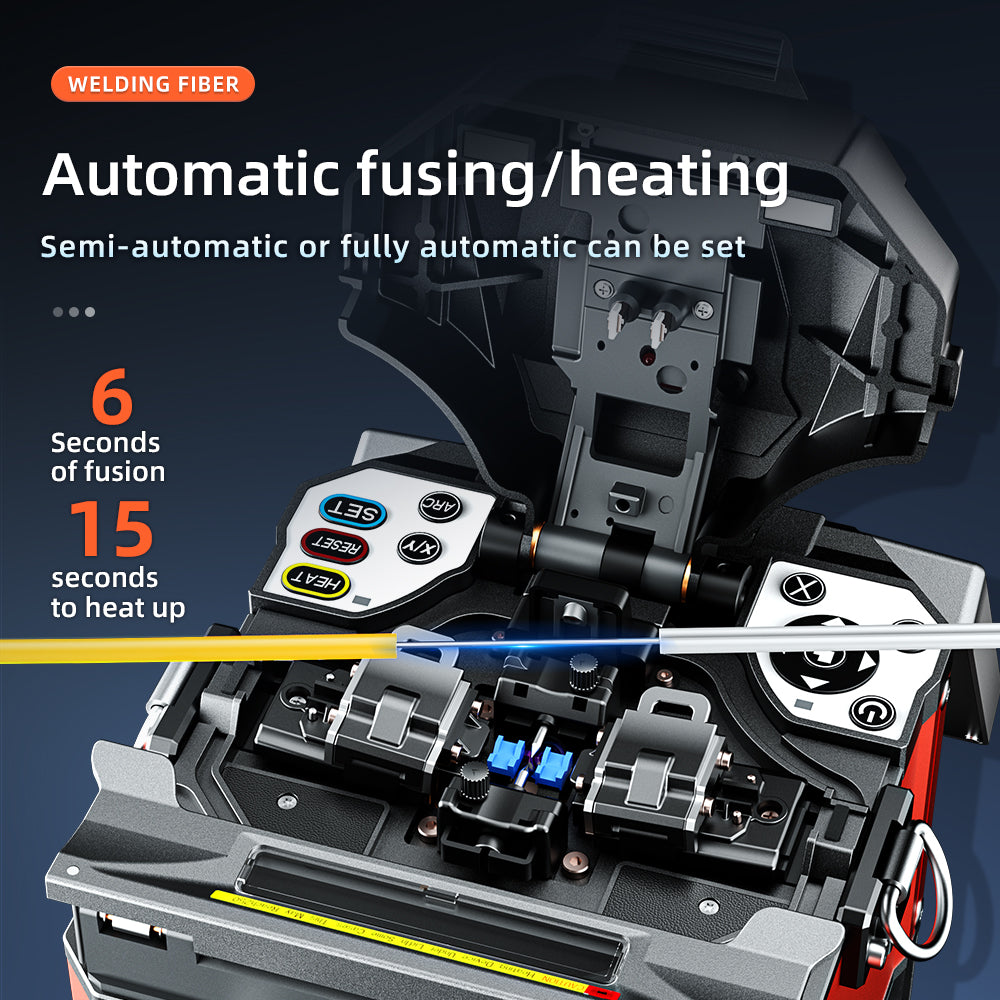

• Ultra-Fast Operation: Delivers lightning-fast 6-second lightning splicing and 15-second highly efficient eco-heating with fully automatic or semi-automatic modes.

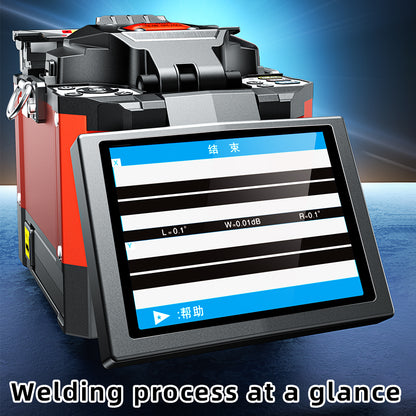

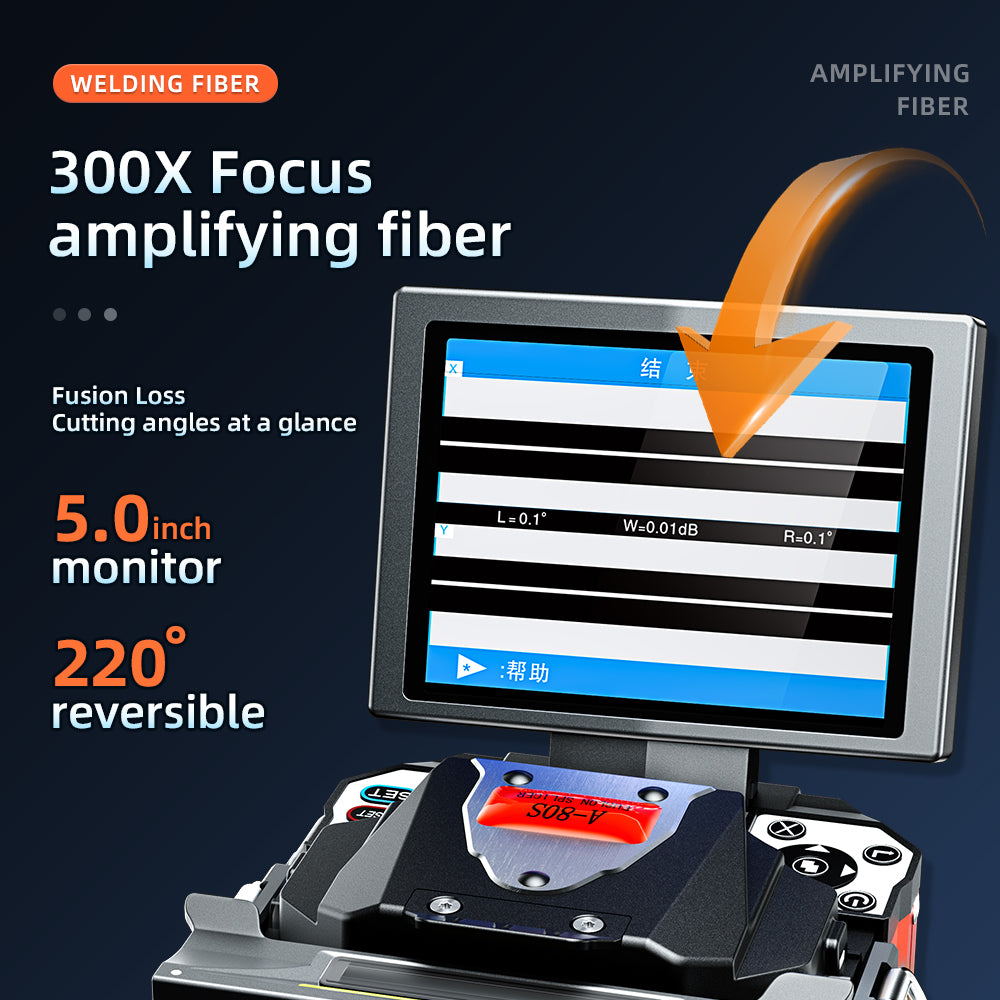

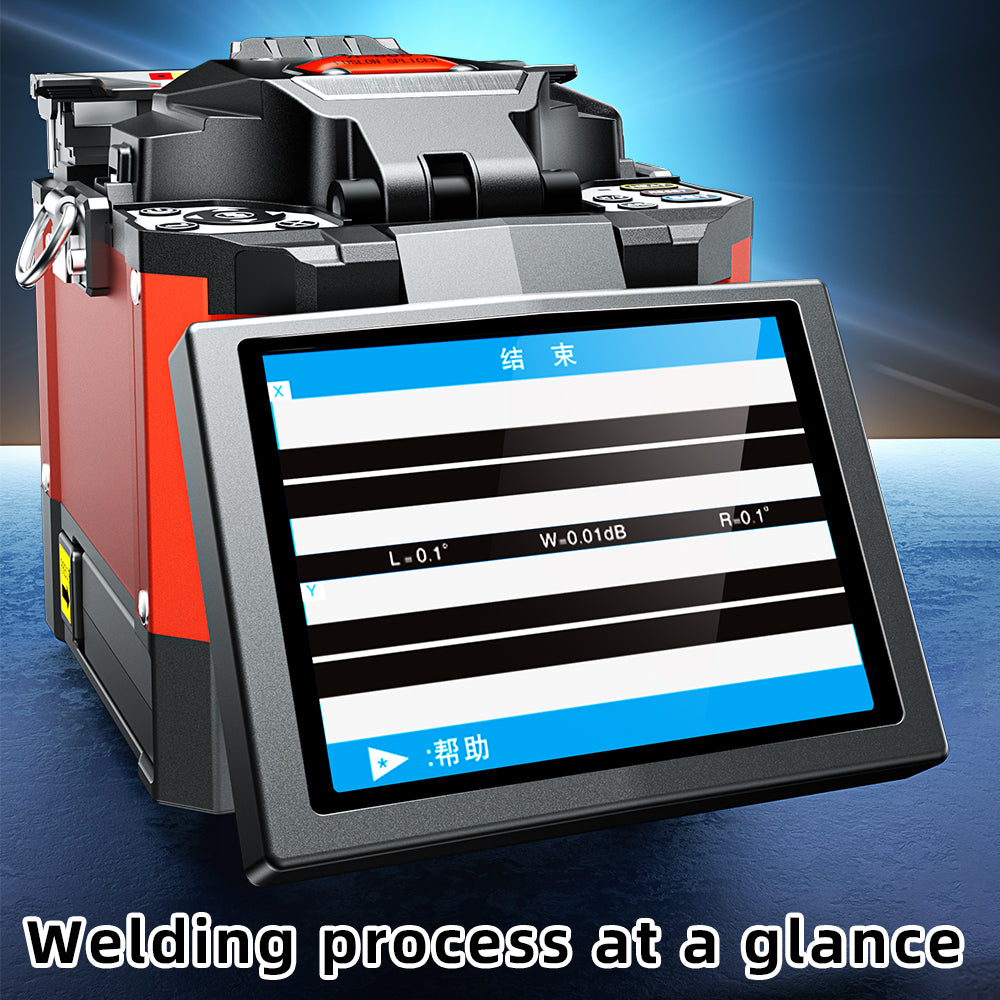

• Core-to-Core Alignment: Advanced automatic core alignment engineering paired with a 5.0-inch LCD and 300x focus magnification guarantees ultra-low loss splices.

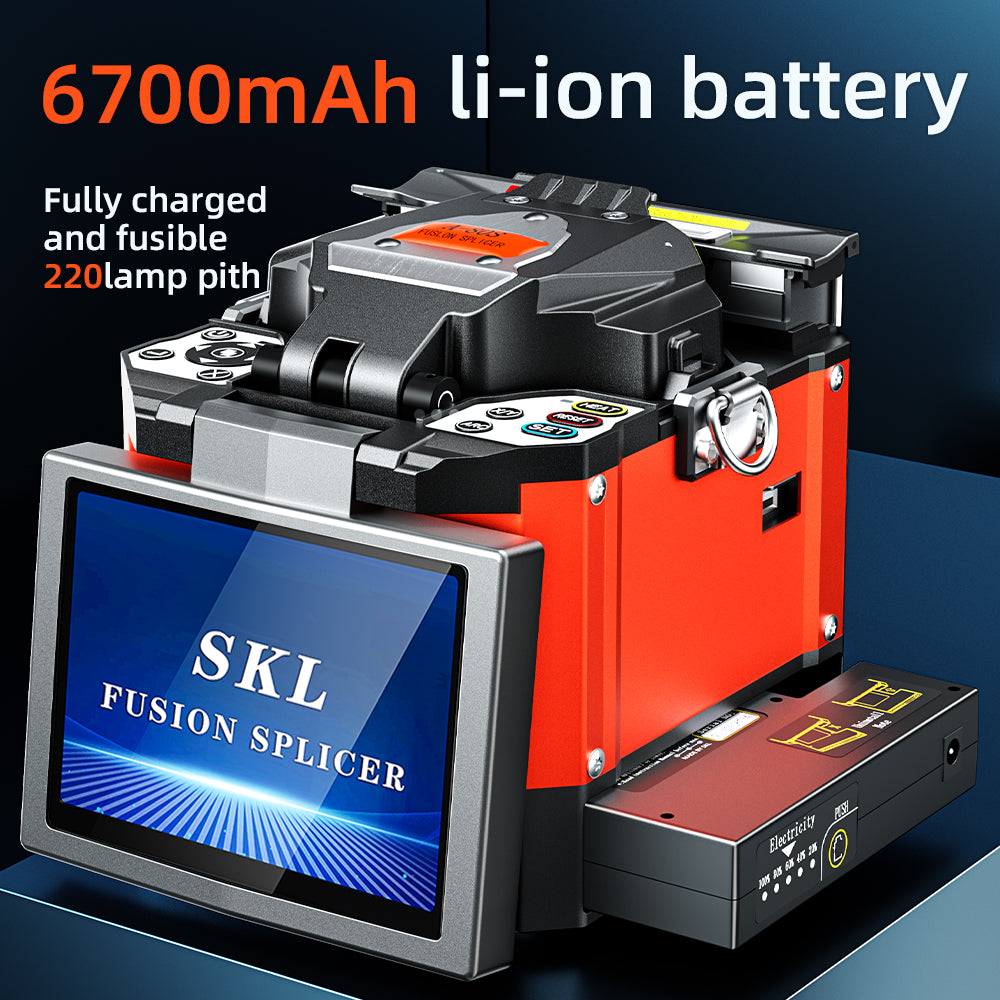

• Massive Battery Runtime: Equipped with a high-capacity 6700mAh lithium battery providing power for over 220 continuous cycles of splicing and heating on a single charge.

• Universal 3-in-1 Fixture: Seamlessly handles FTTH drop cables, pigtails, patch cords, and bare fibers without needing to change clamps.

• Global Language Support: Features 8 switchable languages built natively into the UI, including English, Spanish, Portuguese, French, Russian, Italian, Vietnamese, and Chinese.

🎯 Key Features & Benefits

• Telecom-Grade Precision & Low Loss: Engineered for critical fiber deployments. Achieve exceptional performance with an average splicing loss of just 0.02dB for Single-Mode (SM) and 0.01dB for Multi-Mode (MM) fibers, meeting strict industrial data center standards.

• All-Weather & High-Altitude Resilience: Built to survive demanding real-world environments. Operates flawlessly at altitudes up to 5000 meters, in sub-zero temperatures down to -10°C, and under heavy winds reaching up to 15m/s.

• Smart Heat-Shrink System: The high-efficiency thermal oven reduces shrinking bottleneck times down to 15 seconds. Combined with automatic dual CMOS cameras, the entire splicing and protection workflow is streamlined to save field technicians valuable labor time.

• Comprehensive Fiber Compatibility: Out-of-the-box support for specialized fiber types including SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655), alongside customizable fiber parameters for custom network architectures.

🛠️ Technical Specifications
