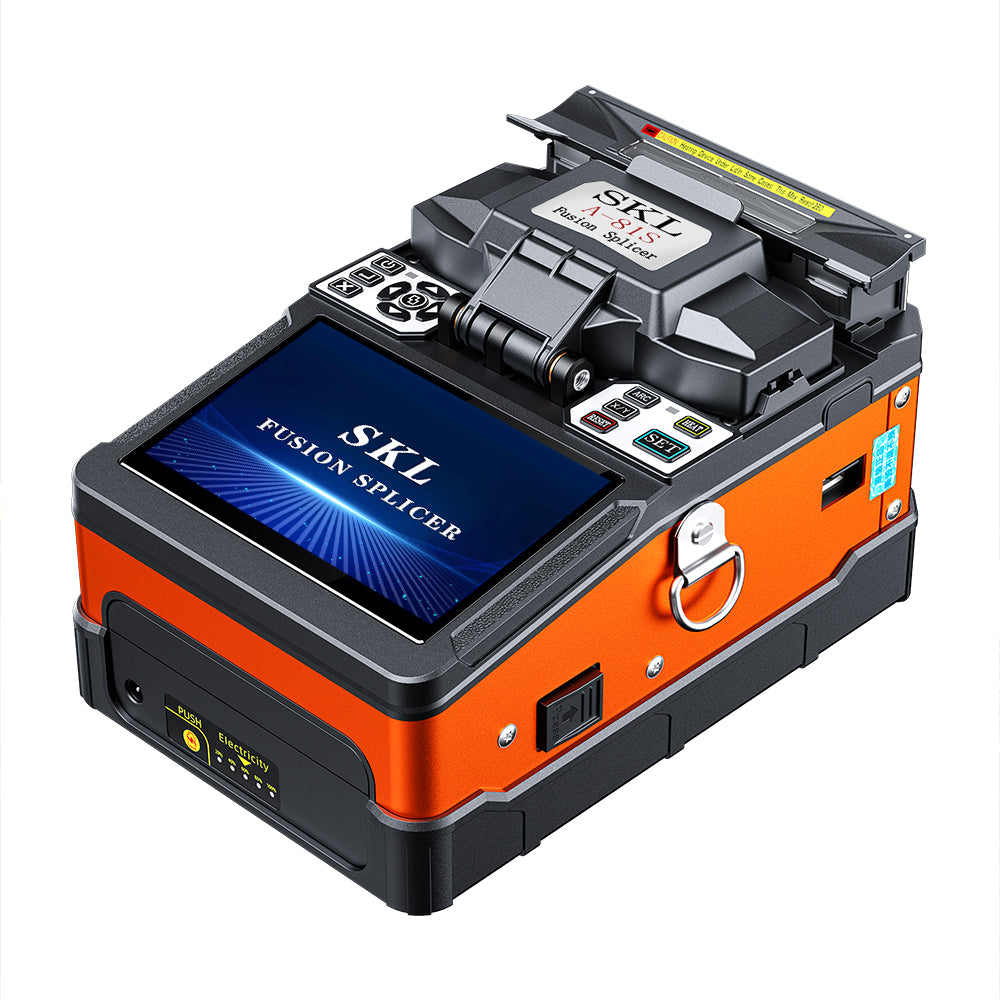

BLB-81S Automatic Fiber Optic Fusion Splicer Machine

• 4-Motor Core Alignment: Built with a dual-axis V-groove observation system and 4 high-speed motors for precision core-to-core alignment, perfect for FTTH and backbone trunk engineering.

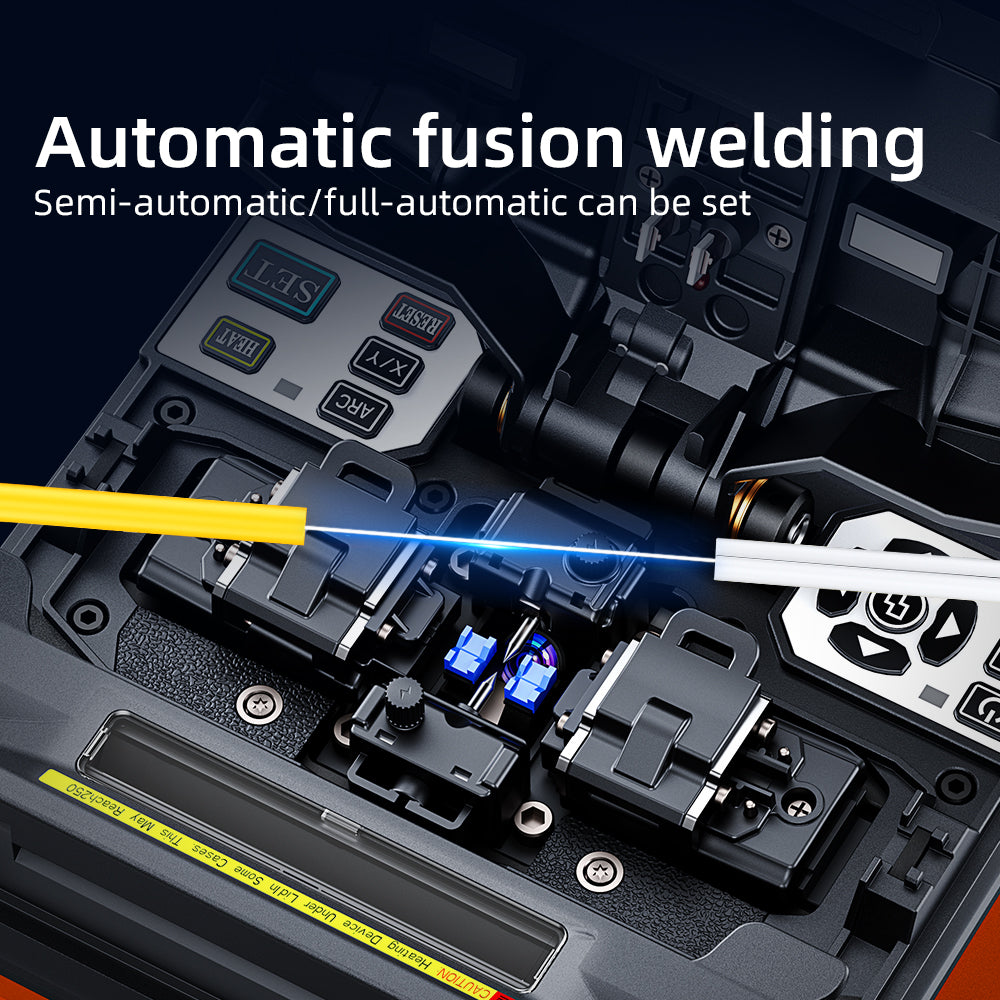

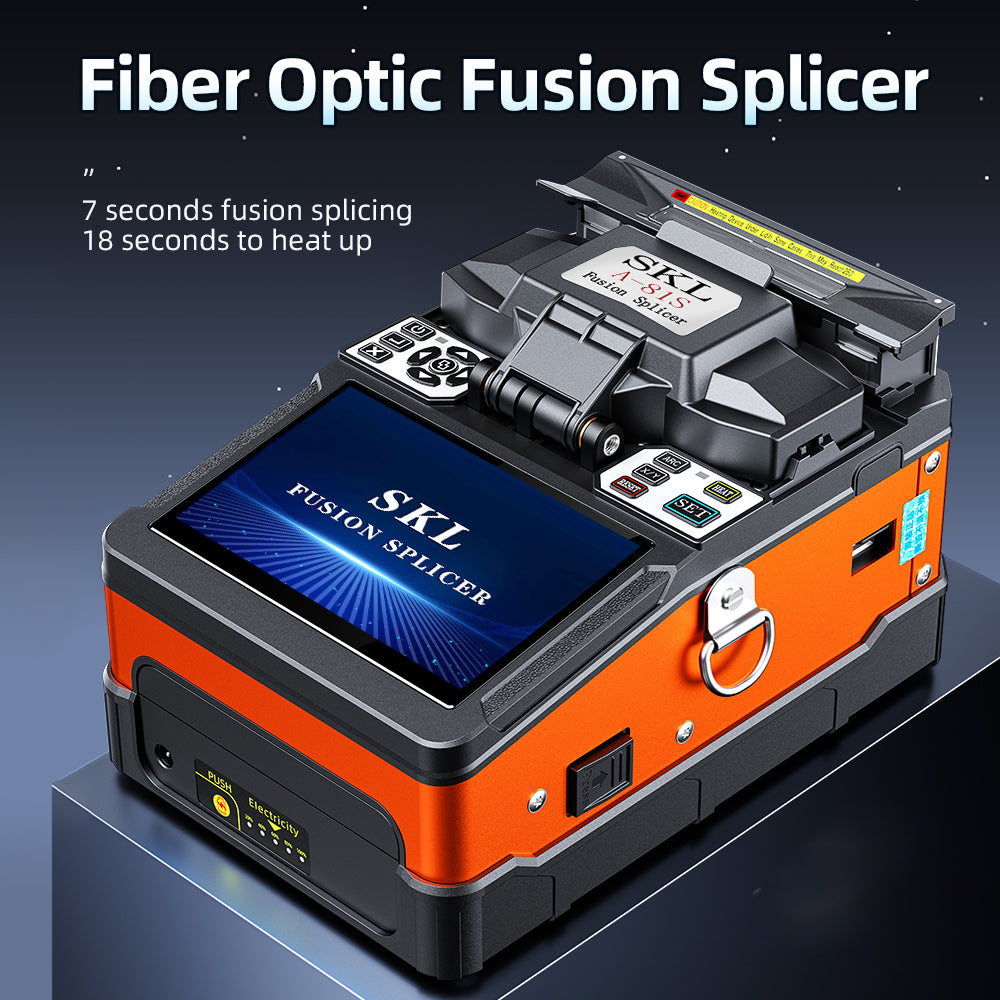

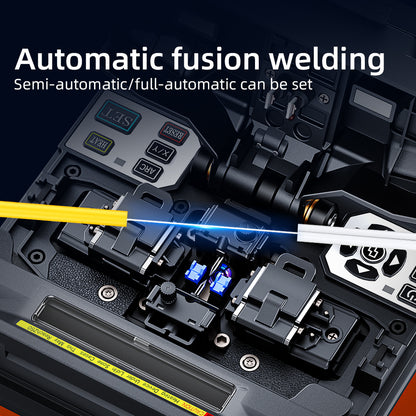

• Ultra-Fast Cycle Times: Delivers rapid 7-second splicing and high-power 18-second automatic heating with selectable fully automatic or semi-automatic modes.

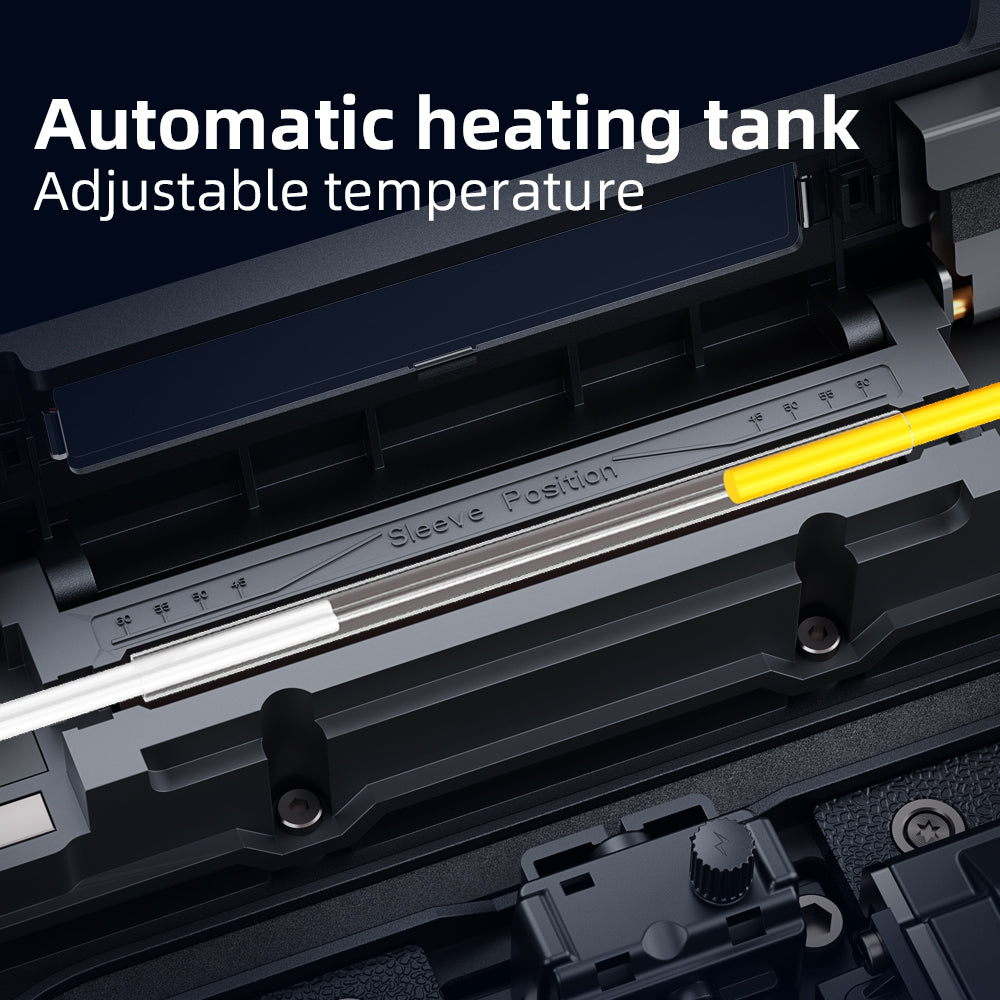

• 180° 3D Thermal Heater: Features upgraded 180-degree three-dimensional heating for uniform shrink-tube protection and unmatched thermal efficiency in cold weather.

• Invertible 5.0" LCD Display: Equipped with a large color screen that automatically flips its interface, facilitating effortless bidirectional operations on the field.

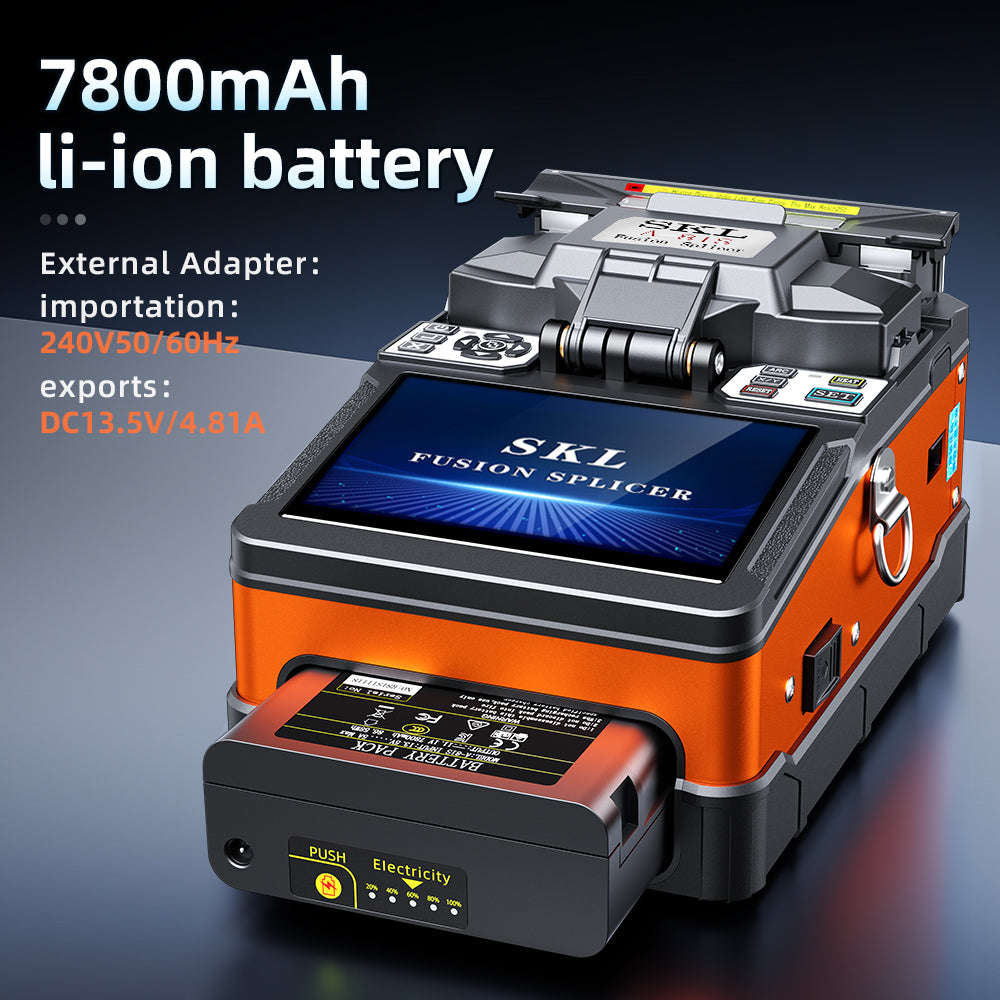

• Heavy-Duty Power Core: Powered by an 11.8V smart battery providing over 200 splice-and-heat cycles, featuring a 15% power-saving architecture for long off-grid work shifts.

🎯 Key Features & Benefits

• High-Precision 4-Motor Architecture: Engineered to bridge the gap between simple residential FTTH links and complex telecom trunk lines. The advanced 4-motor alignment system combined with V-groove precision guarantees industry-leading low splicing losses of 0.02dB (SM) and 0.01dB (MM).

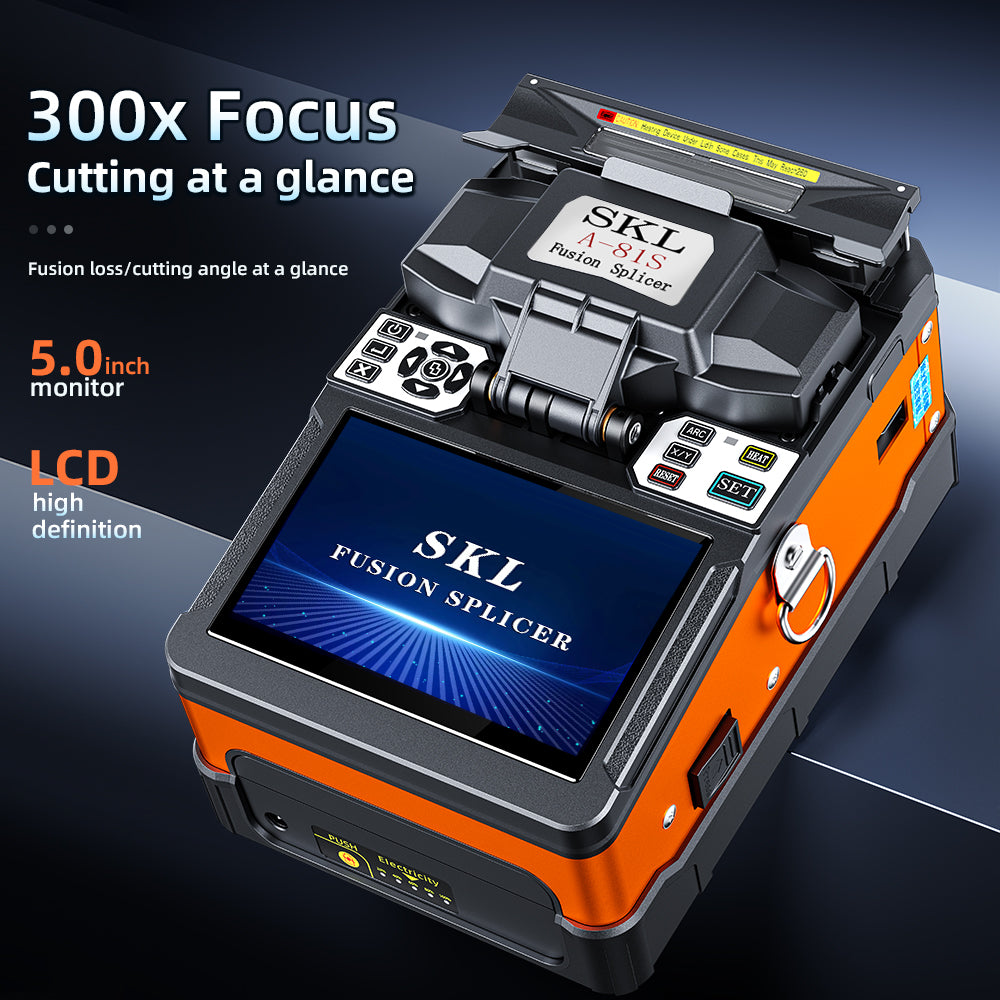

• Smart Bidirectional Flip Screen: Designed for dynamic field work. The 5.0-inch high-resolution display supports crystal-clear 300X micro-zoom tracking on X/Y axes, and can invert its image orientation to accommodate tight, multi-angle server rack configurations.

• Advanced 180° Thermal Management: The V-type high-power automatic heater surrounds the heat-shrink sleeve with 180° three-dimensional heat. This eliminates weak spots and bubbles during the curing process, dropping typical heating cycles down to 18 seconds.

• Universal Multi-Cable Compatibility: The multi-functional custom fixtures natively grip bare fibers, pigtails, patch cords, drop cables, and specialized SC fast-connectors without requiring constant hardware swaps.

🛠️ Technical Specifications
